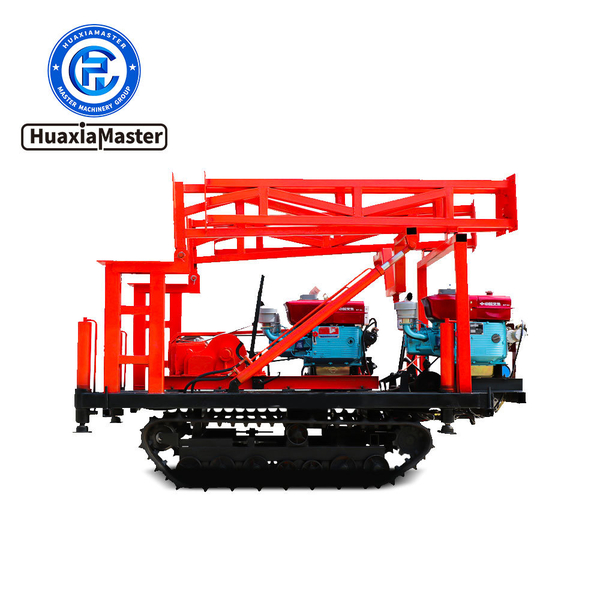

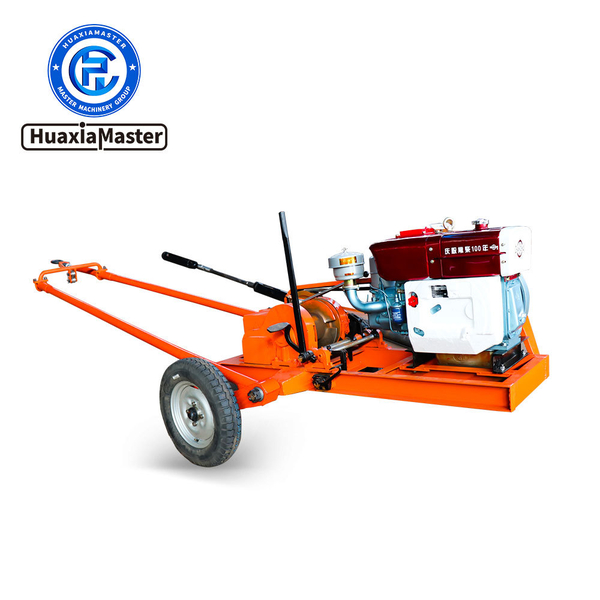

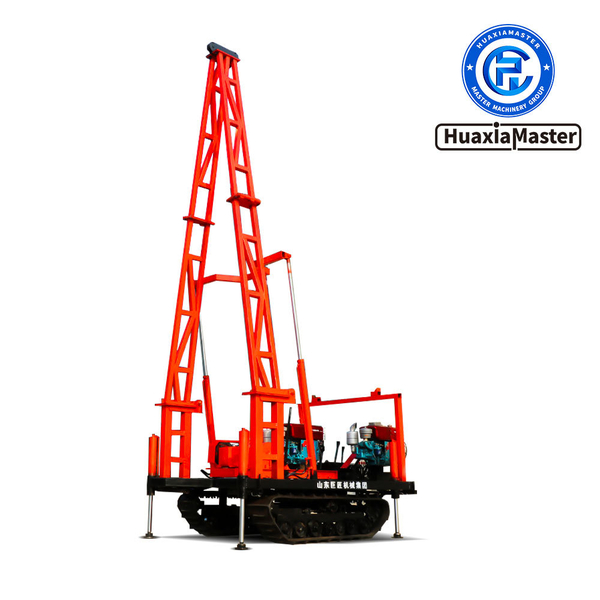

SH30-2A Engineering Survey Drilling Rig

1、Introduction of SH30-2A Engineering Survey Drilling Rig
SH30-2A engineering survey drilling rig is mainly used in the geological survey of placer gold exploration, industrial buildings, civil buildings, roads and bridges. The drilling rig has two feeding modes, impact and rotary, and customers can equip it on demand. Drilling rigs can be machined and customized to crawler type.
2、Features of SH30-2A Engineering Survey Drilling Rig
2.1 Simple operation and high degree of mechanization, greatly get rid of heavy manual labor.
2.2 Light weight, compact structure, good disintegration performance, removable in mountainous areas.
2.3 Equipped with a pair of rubber wheels, in flat road can be used to achieve displacement by car towing.
3、Parameters of SH30-2A Engineering Survey Drilling Rig
Model SH30-2A
Drilling capacity Open hole dia. 142mm
End hole dia. 110mm
Drill pipe dia. 42mm
Drilling depth 30m
Engine Model D180Z
Power 15hp
Winch Lifting weight max. 1500kg
Lifting speed 0.24、0.57、1.48m/s
Turntable Caliber 150mm
Speed 18、44、110r/min
Derrick Height 6m
Rubber wheels Wheel spacing 1100mm
Dimensions and weight Dimension 1780*1010*900
Weight 500kg
Note: Products are constantly being improved. Any changes will not be notified separately. Please refer to the actual product.
