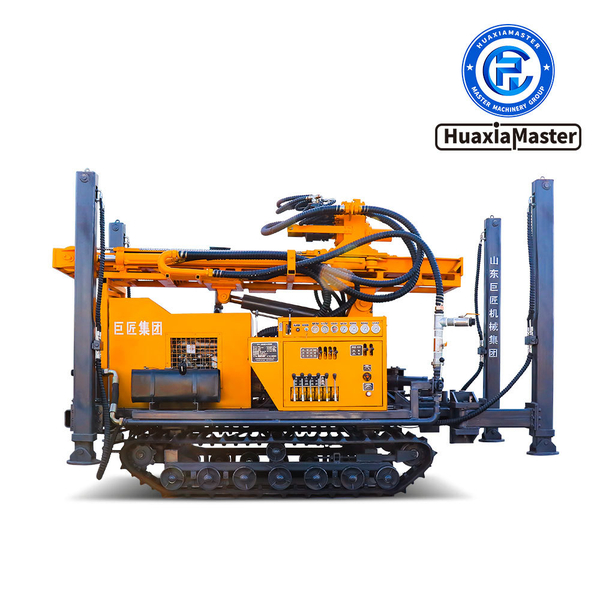

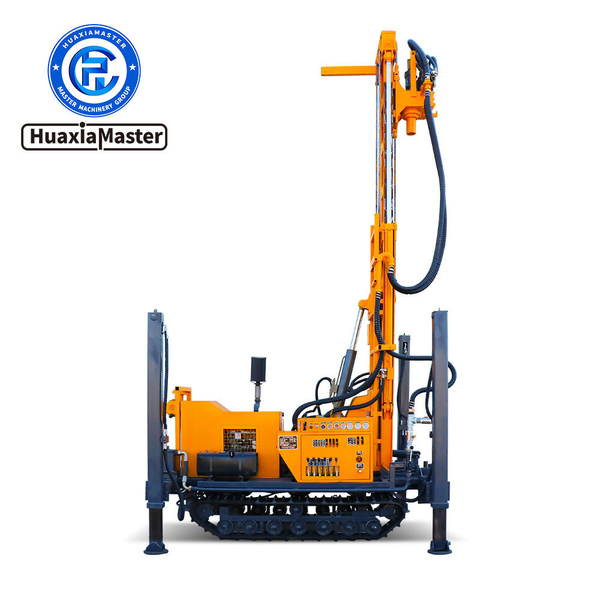

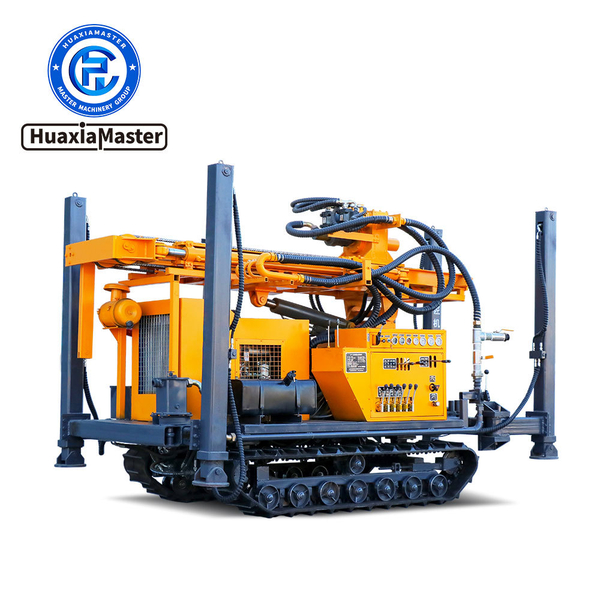

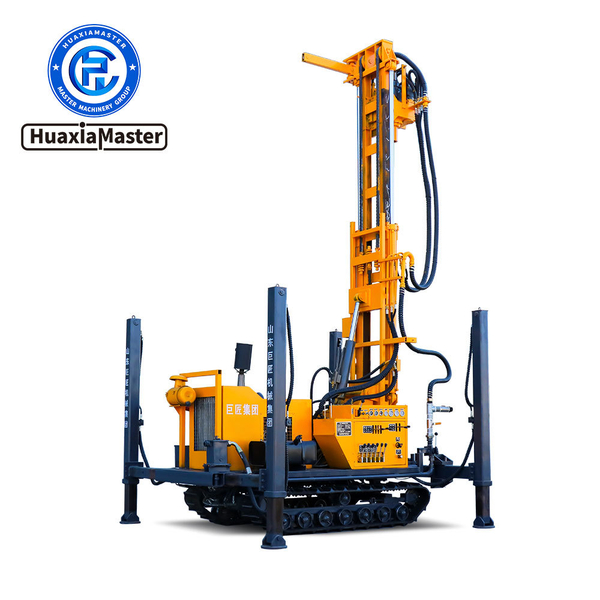

CJDX Series Crawler Pneumatic Water Well Drilling Rig 1 в Актау

1、Introduction Of CJDX Series Crawler Pneumatic Water Well Drilling Rig
CJDX series crawler pneumatic water well drilling rig is a kind of pneumatic water well drill jointly developed by HUAXIAMASTER GROUP and Jining Master Research Institute. It is mainly used for drilling operations in hilly and mountainous areas where there are many rocks. It has the advantages of large drilling diameter, deep drilling, fast penetration, flexible movement and high efficiency. It has been widely used in industrial drilling, geothermal drilling, environmental monitoring drilling and other occasions.‌
2、Features Of CJDX Series Crawler Pneumatic Water Well Drilling Rig
2.1 Using the principle of pneumatic impact, the drilling footage is fast and the drilling efficiency is high.
2.2 Equipped with rubber steel wire tracks, it is easy to move, and it will not hurt the road surface when walking on urban roads.
2.3 Equipped with hydraulic high outrigger, it is easy to load and unload the truck, save the hoisting cost, and can be used for leveling the drilling rig to maintain the stability of the fuselage
2.4 Equipped with high-power diesel engine, strong power, to meet the needs of work.
2.5 Equipped with hydraulic take-off and landing composite boom to save space and provide strong lifting force for deep hole operation.
2.6 The drilling rig is equipped with hydraulic feeding system, dual hydraulic motor power head, chain drive and hydraulic cylinder propulsion, with large torque and high drilling efficiency.
2.7 Equipped with a quick stripper, the drill pipe can be disassembled quickly, saving time and labor.
2.8 The operation handle is centralized, reasonable in layout, safe and feasible.
2.9 Excellent workmanship, durable and low maintenance cost.
3、Parameters of CJDX Series Crawler Pneumatic Water Well Drilling Rig
Drilling rig specifications CJDX-160 CJDX-200 CJDX-230S
Borehole diameter Φ130-φ203 Φ140-Φ325 Φ140-Φ325
Drilling depth 160m 200m 230m
Drill pipe diameter Φ76 Φ76、Φ89 Φ76、Φ8
